Kitchen cabinets look simple when every box forms one clean line, but the room behind that line may be far from uniform. A floor can rise across the run, a back wall can bow, and a corner can be wider at the top than at the bottom. Those variations are common in older Rochester-area homes and they matter before cabinet positions, appliance openings, fillers, and countertops are finalized.
The useful goal is not to force every cabinet to copy the room’s irregular shape. It is to establish a clear reference, keep the cabinet run visually consistent, and absorb the room variation in planned locations. That approach makes doors and drawers look aligned while giving the countertop, end panels, trim, and nearby appliances a sensible place to meet.

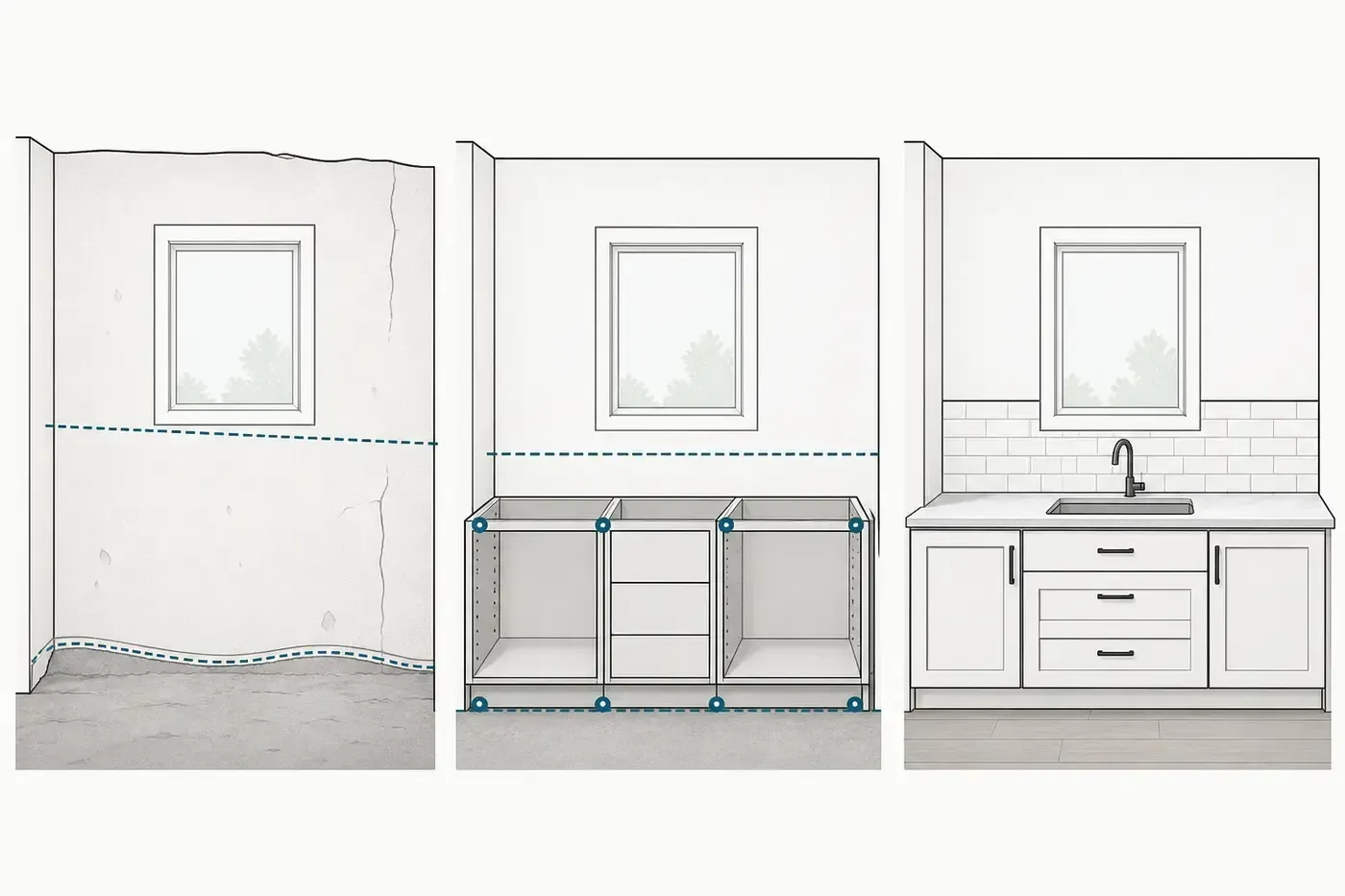

Start with a level reference, not the floor
The floor is the first surface people see below base cabinets, yet it is not always a dependable layout line. If cabinet heights simply follow a sloped floor, the top of the run can drift. That drift becomes obvious at the countertop, backsplash, window stool, and any cabinet that returns into a corner.
A better plan begins by reviewing the full run and establishing one level reference for the cabinet tops. The high point of the floor matters because it affects where the lowest cabinet can sit. From there, the remaining boxes can be coordinated to the same line, with the floor variation handled below rather than repeated across the top.
Map the entire run before choosing fillers and panels
A cabinet layout should be treated as one connected composition, not as a row of separate boxes. Record the wall length at more than one height, review both corners, and compare the front cabinet line with the back wall. A measurement taken at a single point can miss a bow, a tapered opening, or a corner that changes from bottom to top.
This whole-run view shows where room is needed for fillers, finished end panels, door swing, drawer clearance, and countertop projection. It also helps prevent a common planning problem: using all available width for cabinet boxes, then discovering that a door binds against a side wall or a drawer pull meets nearby trim.
Separate cabinet alignment from the wall’s shape
When a back wall waves in and out, the cabinet fronts should still read as a deliberate straight line. The space behind the boxes may vary, but that variation should not make each cabinet face step forward or backward. The same principle applies to a wall that is slightly out of square with an adjoining side wall.
This is where coordinated shimming, fastening points, and a planned front line become important. The exact approach depends on the cabinet system and the room, but the decision should be made across the run. Correcting one box in isolation can move the problem to the next cabinet or change the opening reserved for an appliance.
Give corners enough room to function
Corners concentrate small layout differences. A wall cabinet door may need room to open past an adjoining handle. A base cabinet drawer may need clearance from the cabinet on the return wall. If the corner is not square, the apparent gap can also change from the countertop level to the upper cabinet line.
Plan corner fillers by function as well as appearance. The narrowest possible strip is not automatically the best result. A slightly wider, well-proportioned filler can give doors and drawers room to operate and can make an uneven corner look intentional instead of crowded.
Plan appliance openings from finished cabinet faces
Appliance spaces should be based on the final cabinet positions, finished panels, and the actual product dimensions, not only on the bare wall. A refrigerator panel, a filler beside a range, or a finished end at a dishwasher can change the usable opening and the visual center of the run.
Review the opening at the front, middle, and back. In a tapered room, an opening can look adequate at the cabinet faces while narrowing toward the wall. Door swing, handle projection, adjacent drawer movement, and the route used to move the appliance into place should all be considered before the cabinet line is fixed.
Coordinate countertop fit before finish details
The countertop creates a long, highly visible line, so it often reveals variation that was easy to overlook at the box stage. A bowed wall can leave an uneven rear gap. A corner that is not square can affect the shape of an L-shaped top. A change in cabinet depth can alter the front projection from one end to the other.
Plan the cabinet line first, then review how the top will meet the wall, side panels, backsplash, sink cabinet, and exposed ends. The countertop should not be expected to hide every room condition. Clear decisions about the front line, rear fit, and finished ends create a more controlled result.
Use fillers and scribed pieces intentionally
Fillers are not leftover strips added at the end. They are planning tools that absorb wall variation, protect door and drawer movement, and create a clean transition to adjacent surfaces. A scribed piece can follow a wall that is not straight while the cabinet beside it remains aligned with the rest of the run.
The best location for that adjustment is usually where it will be least distracting and most useful. Sometimes that is at a wall end; sometimes it is beside a tall cabinet or at a corner. Distributing small differences thoughtfully often looks better than concentrating all of the variation in one visibly oversized strip.
Review doors, drawers, hardware, and nearby trim together
A cabinet box may fit on paper while its moving parts do not. Open the planning view beyond the box dimensions. Consider the full swing of doors, the travel of drawers, the projection of handles, and nearby window or doorway trim. Upper doors also need a sensible relationship with the ceiling line and any finished panel above them.
Hardware placement can make slight alignment differences more noticeable, especially across a long bank of drawers. Establishing consistent door and drawer lines before hardware locations are finalized helps the entire run read as one composition.
Older Rochester kitchens often combine several generations
Many local kitchens have been updated in stages. One wall may be original, another may have been patched, and a doorway or window may have changed during an earlier renovation. The floor finish may also vary beneath existing cabinets. These conditions do not automatically prevent a focused cabinet update, but they make a single-point measurement less useful.
A good plan records what will remain, what will be removed, and where the new cabinet line must meet older work. Retained flooring, a fixed window, existing trim, and a partial backsplash can all influence the most practical starting point.
A practical sequence for planning the run
First, define the exact cabinet run and identify every fixed element that remains. Next, establish the level top line and compare it with the floor from end to end. Then map the front cabinet line, corners, and appliance openings as one layout.
After that, assign fillers, finished panels, and scribed pieces where they solve a specific fit or clearance issue. Review doors, drawers, and handles in their open positions. Finally, coordinate the countertop, backsplash edges, exposed cabinet ends, and nearby trim with the cabinet positions already chosen.
This sequence keeps finish choices from driving the layout too early. It also gives the homeowner and installer a shared picture of where the room variation will be absorbed and which visible lines should remain consistent.
When a partial update needs a broader cabinet plan
A partial kitchen update may keep most boxes while replacing a few cabinets, adding a pantry, or changing one appliance opening. In that situation, the retained cabinets become part of the reference. Their top line, face position, depth, and door style affect how new work can join them.
Before ordering a single replacement box, compare the retained run with the wall, floor, and proposed addition. A small mismatch at the connection can become obvious once new doors, panels, and countertop sections sit beside older work. Planning the transition is often more important than matching the nominal box width alone.
Prepare for a productive on-site conversation
Have the room dimensions, appliance model information, cabinet plan, and a list of items that will remain available. Mark which ends will be visible and note any doors, drawers, or trim that already feel tight. Photos of the entire wall are more useful than isolated close-ups because they show how each condition relates to the full run.
Livanzh can review cabinet installation or partial kitchen update plans in the context of the actual room. The conversation should connect cabinet alignment, fillers, appliance openings, countertop fit, and finish carpentry so that one decision does not create a problem elsewhere.
Plan the visible lines first
Uneven walls and floors do not require an uneven-looking kitchen. The key is to establish the level and straight lines people will see, then plan where the room’s variation can be absorbed with enough space for doors, drawers, appliances, panels, and countertop fit. A whole-run layout makes those decisions visible before finish work begins and gives each part of the kitchen a clear relationship to the next.
